Generated from the legal survey is a plan showing the property, building(s) outline, setbacks, grades, and the occasional topography and trees.

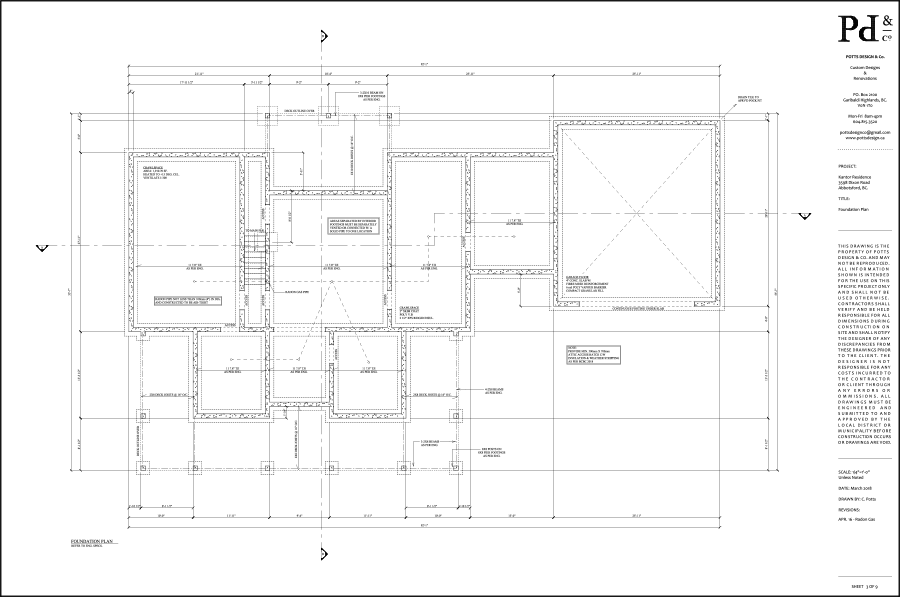

This plan shows the location of footings, posts, and slabs, as well as the type of foundation construction.

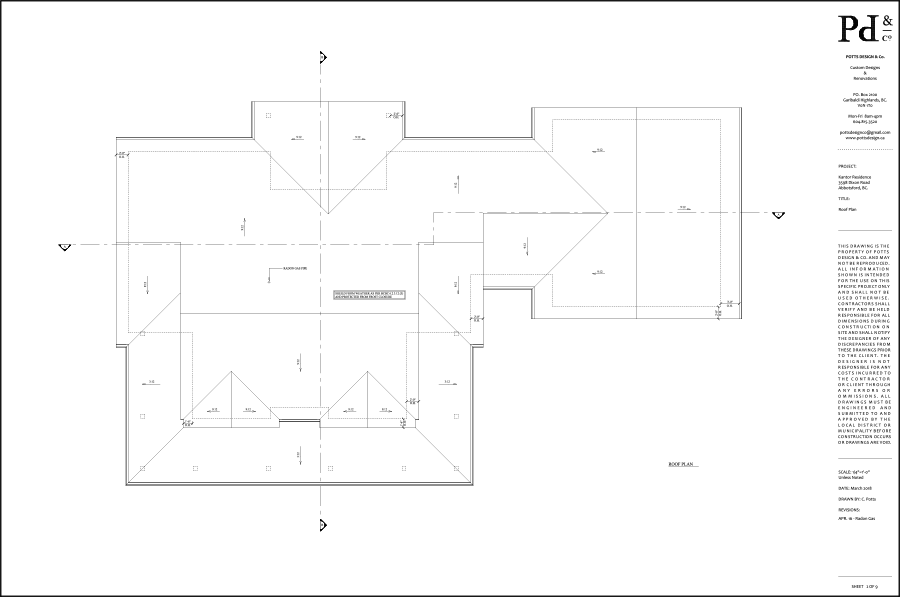

This plan shows the slopes, valleys, ridges and hips on the roof with downspout locations and the building outline below.

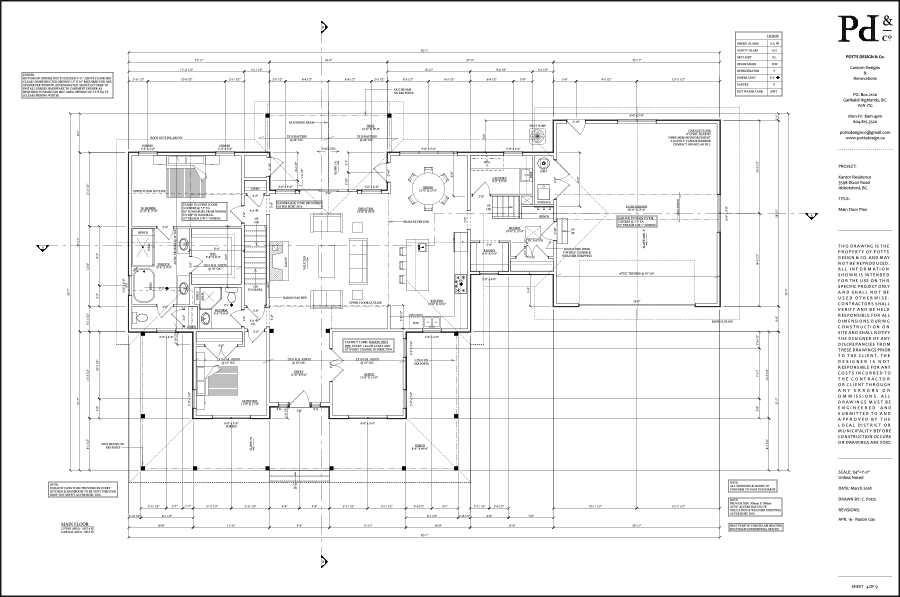

Views of each floor, looking down from above. They show room dimensions, window and door locations, furniture placement, etc.
Flat views of the outside of the house, looking at the front, left, rear and right with material notes.

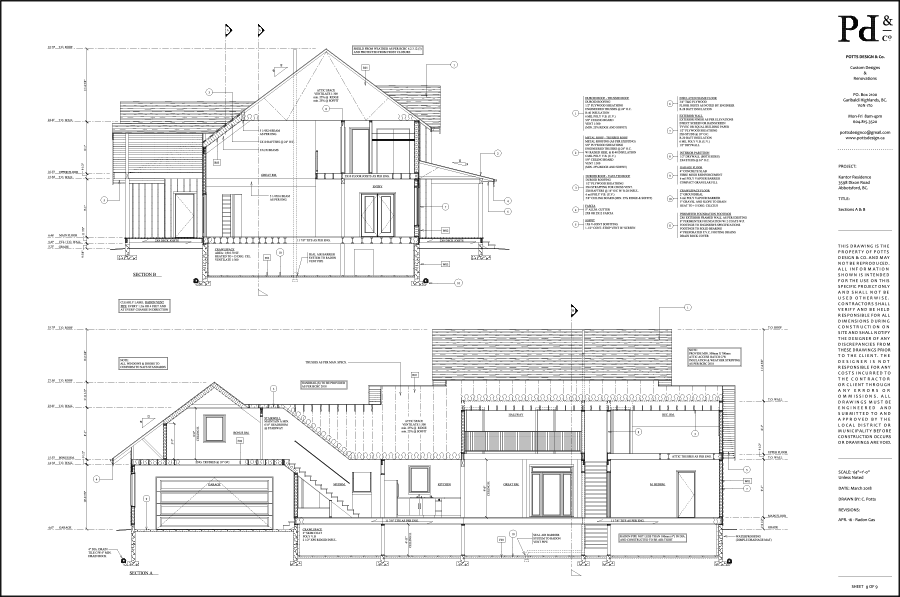

Views of the building if you were to cut right through it. Two sections are included with each plan. Additional sections required for a more complex build.
DETAILS & NOTES
Building code construction notes and details required for Municipal/ District purposes.
A coloured three-dimensional view of your home. This is not a rendered image, but some would say just as good.
